OAU-001 Neomonoscope

Rod Bantjes, “OAU-001_Neomonoscope.html,” created 9 August, 2025; last modified, 23 october, 2025 (https://people.stfx.ca/rbantjes/).

Neomonoscope

CAUTION: These are unfinished research notes. I cannot yet vouch for their accuracy, judiciousness or completeness.

#OAU-001

English, 1860

Dimensions (closed): H=, W=, D= cm

Lens: ⌀= cm, ƒ= cm



This entry is for the neonomoscope described in Paul Adolphe Auguste Beau’s 1860 patent. It is likely the first optical machine designed for viewing photographs. Later devices include Carlo Ponti’s Alethoscope, (1861), Charles John Rowsell’s Graphoscope (1864) and Francis Frith’s Cosmoscope, (ca. 1870).



Known examples of devices labelled as “neomonoscopes” do not conform to the patent description. In a text pasted to one of them, the maker, presumably Breau, describes the neomonoscope as a simplified stereoscope. He thought it produced a stereoscopic effect in photographs, but more simply, dispensing with the double lenses and the paired photographs taken from different angles. He writes “The NEOMONOSCOPE is an instrument which rivals, in simplicity of construction, all those previously invented to produce a relief from Photographic Images. Contrary to its predecessor, the STEREOSCOPE, it does not require Portraits or Views to be taken, especially at different angles, but permits Photographs of any description to be seen with Stereoscopic effect.”



From the patent description below it seems likely that he modelled the device on the Brewster stereoscope. It probably looked like a Brewster stereoscope, but with a single lens. The name monoscope was probably conceived in opposition to stereoscope with “neo” added to indicate that it worked on a new principle.

My Invention consists in constructing a neomonoscope or apparatus with one glass or several glasses superposed for the purpose of obtaining a similar effect to that derived from viewing pictures in or through a stereoscope. The monoscope is a pyramidal or conical-shaped case, with a part of one of the sides removed to admit light, fitted with a flap or not as desired. The glass is fitted in the top of the apparatus, and in some cases flaps for forming, when raised, a dark chamber between the eye and the glass, are added. The bottom of the apparatus is made to slide to admit of its being entirely removed, in order to view transparent objects or others apart from the apparatus itself. The sides of the apparatus are either made rigid or to fold. I sometimes add a pocket which forms part of the sides or bottom of the apparatus to contain photographic or other representations.[1]

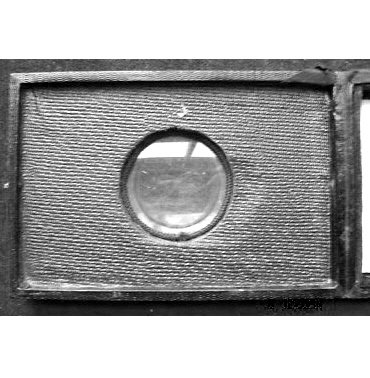

There are no known examples of the patent version. The image on the Taxonomy Index from which this page links is probably of the Cloth Neomonoscope version.


Endnotes:

[1] British Patent no.823, 30the March, 1860, "An Apparatus for Viewing Photographic Pictures."
